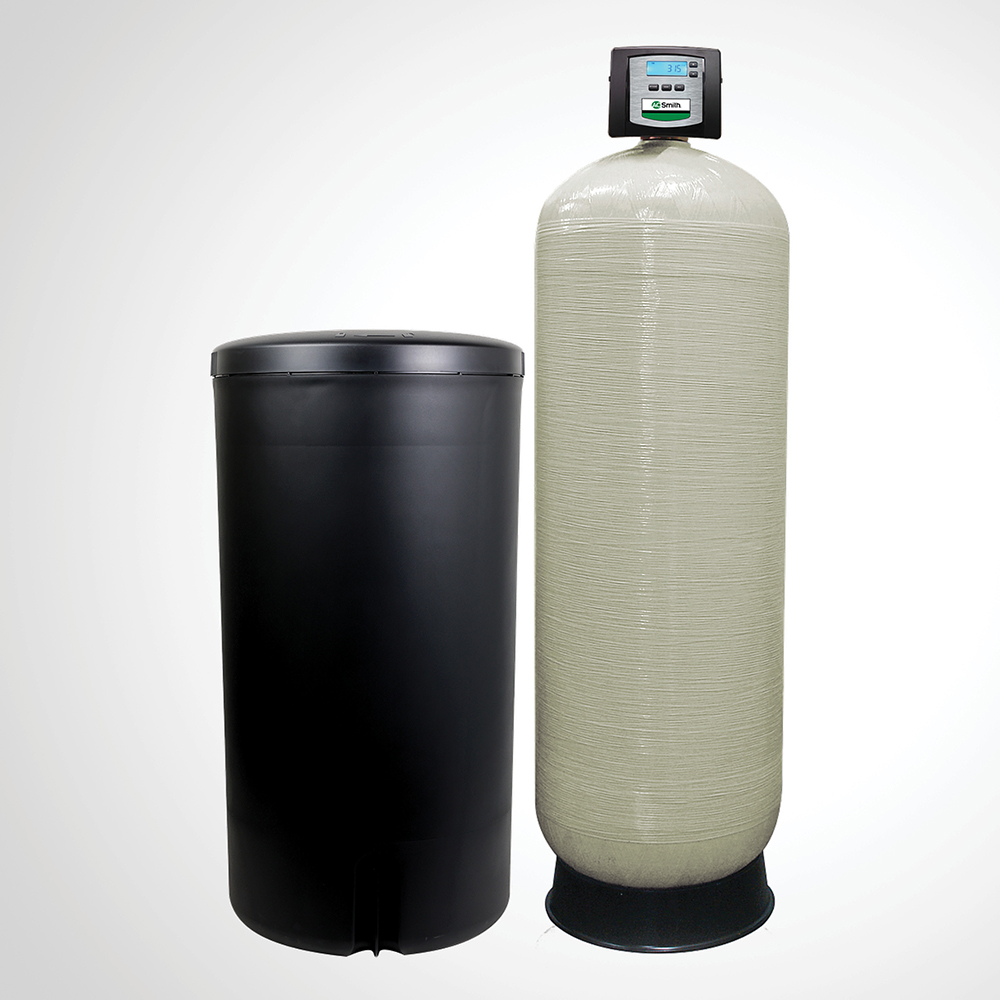

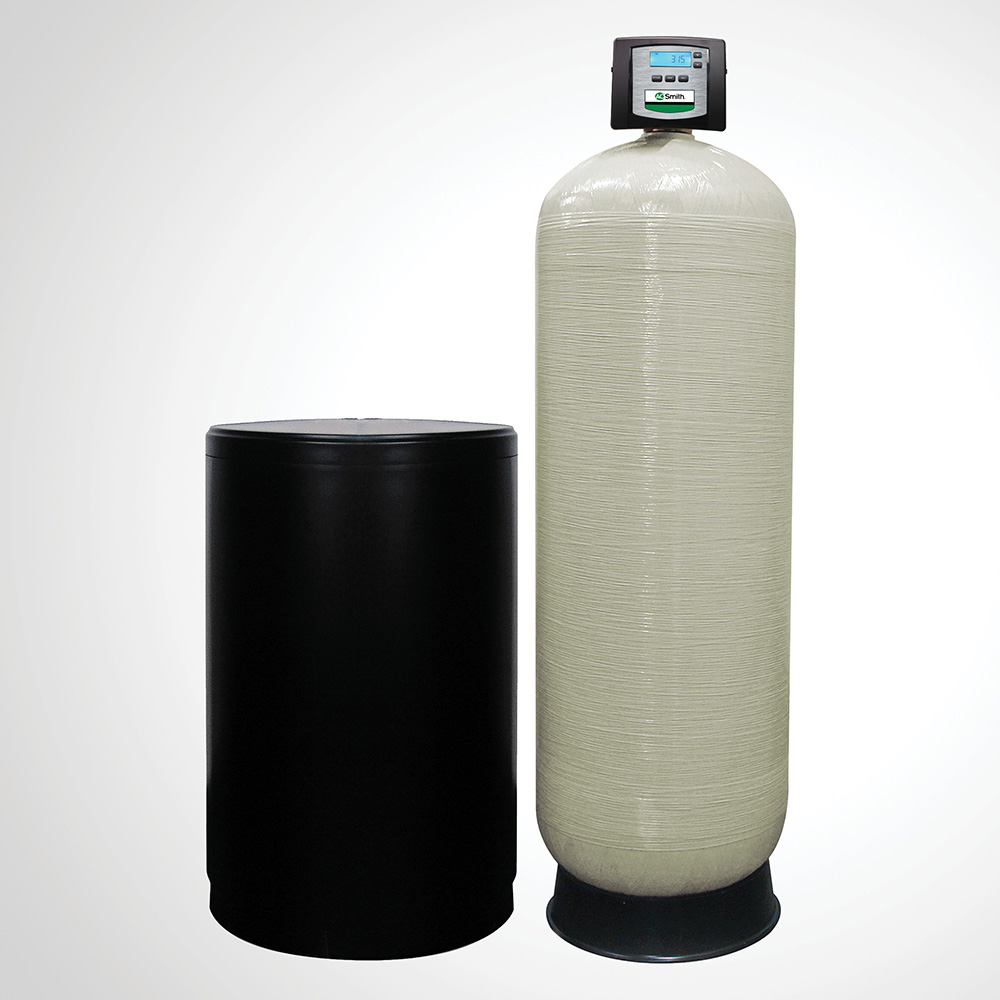

C47 Series Water Softener/Iron Reduction Systems

The A. O. Smith C47 Series delivers multi-contaminant treatment for commercial applications using challenging well-water sources. Combining softening, iron and manganese reduction, and pH adjustment in a single system, the C47 platform provides flexible configurations while advanced controls and durable construction ensure reliable performance and long-term serviceability.

C47 Series Water Softener/Iron Reduction Systems

Product Details
  • Multi-contaminant treatment reduces hardness, iron, and manganese in demanding well-water conditions
  • Flexible system configurations support single through multi-unit designs
  • Advanced controls provide system visibility
  • Fully adjustable regeneration cycles provide flexible operation
  • Integrated chlorine disinfection for bacteria control within system (select sizes)
  • Durable fiberglass-reinforced mineral tanks resist corrosion for long-term reliability
  • Top-mounted valve design allows easier access for servicing and maintenance
  • NSF-certified components ensure trusted material quality and system integrity

Options

  • Progressive flow
  • Headers and skid mounting
  • ASME tanks (18” and larger)
  • Caustic injection system
  • Multiple valve sizes
Specifications
Continuous Service Flow Rate (GPM) @15 psi pressure loss
up to 74 gpm
Rated Capacity (Grains @ 15 lb. salt)
up to 240,000
Min Pressure (psi)
30 psi
Max Pressure (psi)
100 psi
Min Temperature
40 F
Max Temperature
100 F
Pipe Size
1"-2"
Resin Volume (cu.ft.)
up to 10.0 cu.ft.
Certification
NSF Certified Components
